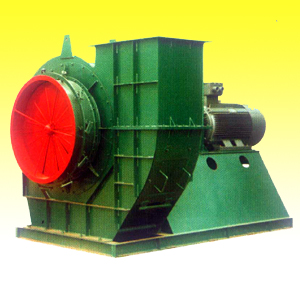

GY5-51型锅炉送引风机用途：
GY5-51型锅炉送引风机主要是用于火力发电厂2t/h~670t/h蒸汽锅炉的送引风机系统，也满足了流化床炉高压头性能参数之要求。该系列风机也可用于除尘、矿井通风及一般通风系统。
送风机输送的介质为空气，引风机输送的介质为烟气或含杂质颗粒之气体。含杂质浓度小于200mg/m3 时可用四年以上。如含杂质大也可使用，但使用寿命相对缩短。送引风机最高使用的温度不超过250℃。
GY5-51型锅炉送引风机型式：
送风机、引风机通常制成单吸型式。机号№8D~29.5D各20个机号共40种规格。
每种风机又可制成左旋或右旋两种型式。从电动机一端正视，叶轮按顺时针方向旋转者称为右旋风机以“右”表示，反之，称为左旋风机，以“左”表示。 风机的出风口位置，以机壳的出口角度表示。
风机传动方式为D式即：悬臂结构，电机与风机连接采用弹性联轴器直联传动 产品全称举例如下：G6—51—1№18D右90°、Y6—51—1№18D左0°。
其中，G、Y分别表示锅炉送风机与锅炉引风机，6为最高效率点的压力系数10倍化整，51为比转数，1为第一次设计，№18表示叶轮直径800mm，90°为出风口角度。
|
G5-51型主要参数 | |||||
|
型号及机号 |
转速 |
配用电机 |
流量 |
全压 | |
|
8D |
1450 |
Y160L-4 |
15 |
9900-14300 |
2525-2435 |
|
9D |
1450 |
Y200L-4 |
30 |
14100-20300 |
3195-3081 |
|
10D |
1450 |
Y225M-4 |
45 |
19300-27900 |
3944-3804 |
|
11D |
1450 |
Y280S-4 |
75 |
25700-37100 |
4772-4603 |
|
11D |
960 |
Y200L2-6 |
22 |
17000-24600 |
2092-2018 |
|
11D |
960 |
Y225M-6 |
30 |
28400-39700 |
1944-1468 |
|
12D |
1450 |
Y3156S-4 |
110 |
33400-48200 |
5679-5478 |
|
12D |
1450 |
Y315M1-4 |
132 |
55600-77900 |
5279-3984 |
|
12D |
960 |
Y250M-6 |
37 |
22100-31900 |
2490-2401 |
|
12D |
960 |
Y280S-6 |
45 |
36800-51600 |
2314-1746 |
|
13D |
1450 |
Y315S-4 |
160 |
42400-61300 |
6665-6429 |
|
13D |
1450 |
Y315M1-4 |
180 |
70700-80200 |
6196-5728 |
|
13D |
1450 |
Y315M2-4 |
200 |
89600-9900 |
5261-4676 |
|
13D |
960 |
Y280S-6 |
45 |
28100-40600 |
2922-2818 |
|
13D |
960 |
Y280M-6 |
55 |
46800-65600 |
2716-2050 |
|
14D |
1450 |
Y355-4 |
220-280 |
53000-124000 |
7729-5423 |
|
14D |
960 |
Y315S-6 |
75 |
35100-50700 |
3388-3268 |
|
14D |
960 |
Y315M1-6 |
90 |
58500-82100 |
3149-2377 |
|
15D |
1450 |
Y355-4 |
315 |
65100-94200 |
8873-8559 |
|
15D |
1450 |
Y400-4 |
355-400 |
109000-152000 |
8249-6226 |
|
15D |
960 |
Y315M1-6 |
90 |
43100-52400 |
3890-3752 |
|
15D |
960 |
Y315M2-6 |
110 |
72200-81400 |
3616-3342 |
|
15D |
960 |
Y315M3-6 |
132 |
91400-101000 |
3070-2729 |
|
15D |
730 |
Y280M-8 |
45 |
32800-47500 |
2250-2170 |
|
15D |
730 |
Y315S-8 |
55 |
54900-76800 |
2091-1578 |
|
16D |
1450 |
Y400-4 |
450-560 |
79100-185000 |
10095-7083 |
|
16D |
960 |
Y315M1-6 |
132 |
52400-75700 |
4426-4269 |
|
16D |
960 |
Y315M2-6 |
160 |
87300-122000 |
4114-3105 |
|
16D |
730 |
Y315S-8 |
55 |
39800-57500 |
2560-2468 |
|
16D |
730 |
Y315M1-8 |
75 |
66400-93000 |
2379-1795 |
|
17D |
960 |
Y315M2-6 |
160-220 |
62900-147000 |
4996-3505 |
|
17D |
730 |
Y315M1-8 |
75 |
47800-69000 |
2889-2787 |
|
17D |
730 |
Y315M2-8 |
90 |
79800-90300 |
2685-2482 |
|
17D |
730 |
Y315M3-8 |
110 |
101000-112000 |
2280-2027 |
|
18D |
960 |
Y355-6 |
220-250 |
74600-108000 |
5601-5403 |
|
18D |
960 |
Y400-6 |
160 |
124000-174000 |
5207-3929 |
|
18D |
730 |
Y315M3-8 |
110 |
56700-94300 |
3239-3011 |
|
18D |
730 |
Y315M2-8 |
132 |
107000-132000 |
2783-2272 |
|
19D |
960 |
Y400-6 |
280-400 |
87700-205000 |
6241-4378 |
|
19D |
730 |
Y315M2-8 |
132 |
66700-96400 |
3609-3481 |
|
19D |
730 |
Y355M2-8 |
160 |
111000-126000 |
3355-3101 |
|
19D |
730 |
Y355M3-8 |
185 |
141000-156000 |
2848-2532 |
|
20D |
960 |
Y400-6 |
400 |
102000-148000 |
6915-6670 |
|
20D |
960 |
Y450-6 |
500 |
171000-239000 |
6428-48S1 |
|
20D |
730 |
Y355M2-8 |
160 |
77800-112000 |
3999-3857 |
|
20D |
730 |
Y315M4-8 |
200 |
130000-147000 |
3717-3436 |
|
20D |
730 |
Y400-8 |
220 |
164000-182000 |
3156-2805 |
|
Y5-51型主要参数 | ||||||
|
型号及机号 |
转速 |
配用电机 |
流量 |
全压 | ||
|
G5-51 |
28D |
960 |
Y560-6 |
1000 |
213000-308000 |
7837-7560 |
|
G5-51 |
28D |
960 |
Y630-6 |
1120-1250 |
356000-498000 |
7285-5498 |
|
G5-51 |
28D |
580 |
Y500-10 |
450-630 |
169000-396000 |
4948-3471 |
|
G5-51 |
28D |
480 |
Y500-12 |
315-355 |
140000-32800 |
3389-2377 |
|
G5-51 |
29.5D |
730 |
Y630-8 |
1120-1600 |
250000-583000 |
8699-6104 |
|
G5-51 |
29.5D |
580 |
Y500-10 |
560-630 |
199000-287000 |
5491-5297 |
|
G5-51 |
29.5D |
580 |
Y560-10 |
710-800 |
331000-463000 |
5105-3853 |
|
G5-51 |
29.5D |
480 |
Y500-12 |
355-450 |
164000-310000 |
3762-3232 |
|
G5-51 |
29.5D |
480 |
Y560-12 |
500 |
347000-383000 |
2968-2639 |
|
|
8D |
1450 |
Y160M-4 |
11 |
9900-16500 |
1568-1455 |
|
|
8D |
1450 |
Y160L-4 |
15 |
18700-23100 |
1345-1098 |
|
|
9D |
1450 |
Y180M-4 |
18.5 |
14100-20300 |
1984-1913 |
|
|
9D |
1450 |
Y180L-4 |
22 |
23500-26600 |
1843-1704 |
|
|
9D |
1450 |
Y200L-4 |
30 |
39700-32900 |
1566-1391 |
|
|
10D |
1450 |
Y200L-4 |
30 |
19300-32200 |
2449-2276 |
|
|
10D |
1450 |
Y225S-4 |
37 |
36500-45100 |
2104-1718 |
|
|
11D |
1450 |
Y250M-4 |
55 |
25700-42900 |
2963-2754 |
|
|
11D |
1450 |
Y280S-4 |
75 |
48600-60000 |
2546-2079 |
|
|
11D |
960 |
Y180L-6 |
15 |
17000-28400 |
1299-1207 |
|
|
11D |
960 |
Y200L1-6 |
18.5 |
32200-39700 |
1116-911 |
|
|
12D |
1450 |
Y280S-4 |
75 |
33400-48200 |
3525-3401 |
|
|
12D |
1450 |
Y280M-4 |
90 |
55600-63100 |
3277-3030 |
|
|
12D |
1450 |
Y315S-4 |
110 |
70500-77900 |
2783-2474 |
|
|
12D |
960 |
Y200L2-6 |
22 |
22100-31900 |
1546-1491 |
|
|
12D |
960 |
Y225M-6 |
30 |
36800-51600 |
1437-1083 |
|
|
13D |
1450 |
Y315S-4 |
110 |
42400-61300 |
4138-3991 |
|
|
13D |
1450 |
Y315M1-4 |
132 |
70700-80200 |
3847-3556 |
|
|
13D |
1450 |
Y315M2-4 |
160 |
89600-99000 |
3266-2903 |
|
|
13D |
960 |
Y225M-6 |
30 |
28100-34300 |
1814-1813 |
|
|
13D |
960 |
Y250M-6 |
37 |
40600-46800 |
1740-1686 |
|
|
13D |
960 |
Y280S-6 |
45 |
53100-65600 |
1558-1274 |
|
Y5-51型主要参数 | |||||
|
型号及机号 |
转速 |
配用电机 |
流量 |
全压 | |
|
14D |
1450 |
Y315S-4 |
160 |
53000-76600 |
4799-4629 |
|
14D |
1450 |
Y315M1-4 |
180 |
88300-100000 |
4461-4124 |
|
14D |
1450 |
Y315M2-4 |
200 |
112000-124000 |
3788-3367 |
|
14D |
960 |
Y280S-6 |
45 |
35100-42900 |
2104-2103 |
|
14D |
960 |
Y280M-6 |
55 |
50700-66200 |
2029-1808 |
|
14D |
960 |
Y315S-6 |
75 |
74200-82100 |
1660-1476 |
|
15D |
1450 |
Y355-4 |
220-315 |
65100-152000 |
5509-3865 |
|
15D |
960 |
Y3155S-6 |
75 |
43100-72200 |
2415-2245 |
|
15D |
960 |
Y315M1-6 |
90 |
81400-101000 |
2075-1694 |
|
15D |
730 |
Y250M-8 |
30 |
32800-47500 |
1397-1347 |
|
15D |
730 |
Y280S-8 |
37 |
54900-76800 |
1298-980 |
|
16D |
1450 |
Y355-4 |
315 |
79100-114000 |
6268-6046 |
|
16D |
1450 |
Y400-4 |
400 |
132000-185000 |
5827-4397 |
|
16D |
960 |
Y315M1-6 |
90 |
52400-64000 |
2748-2747 |
|
16D |
960 |
Y315M2-6 |
110 |
75700-99000 |
2650-2361 |
|
16D |
960 |
Y315M3-4 |
132 |
111000-122000 |
2168-1926 |
|
16D |
730 |
Y280M-8 |
45 |
39800-57500 |
1589-1533 |
|
16D |
730 |
Y315S-8 |
55 |
66400-93000 |
1477-1114 |
|
17D |
960 |
Y315M3-6 |
132 |
62900-90800 |
3102-2992 |
|
17D |
960 |
Y315M2-6 |
160 |
105000-147000 |
2883-2176 |
|
17D |
730 |
Y315S-8 |
55 |
47800-69000 |
1794-1730 |
|
17D |
730 |
Y315M1-8 |
75 |
79800-112000 |
1665-1258 |
|
18D |
960 |
Y315M2-6 |
160 |
74600-91200 |
3478-3477 |
|
18D |
960 |
Y355M1-6 |
185 |
10800-141000 |
3354-2988 |
|
18D |
960 |
Y355-6 |
220 |
158000-174000 |
2745-2439 |
|
18D |
730 |
Y315M1-8 |
75 |
56700-6930 |
2012-2011 |
|
18D |
730 |
Y315M2-8 |
90 |
81900-132000 |
1939-1411 |
|
19D |
960 |
Y315M2-6 |
200 |
87700-107000 |
3875-3874 |
|
19D |
960 |
Y355-6 |
250 |
127000-166000 |
3737-3330 |
|
19D |
960 |
Y400-6 |
280 |
185000-205000 |
3058-2718 |
|
19D |
730 |
Y315M2-8 |
90 |
66700-81500 |
2241-2240 |
|
19D |
730 |
Y315M3-8 |
110 |
96400-126000 |
21612-1952 |
|
19D |
730 |
Y315M2-8 |
132 |
141000-156000 |
1768-1573 |
|
20D |
960 |
Y400-6 |
280-355 |
102000-239000 |
4294-3012 |
|
20D |
730 |
Y315M2-8 |
132 |
77800-130000 |
2483-2307 |
|
20D |
730 |
Y355M2-8 |
160 |
147000-182000 |
2133-1741 |
